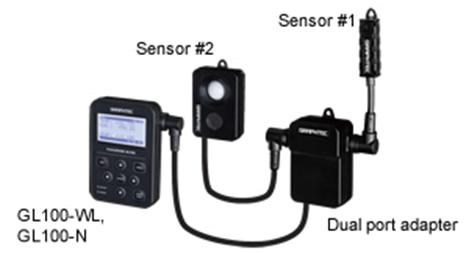

Dual port adapter connects up to two modules for simultaneous interface
-
GL100-WL / N
- Dual port adapter
- Temp./Humidity sensor
- Illuminance/UV sensor
.jpg)
-
GL100-WL / N
- Dual port adapter
- Temp./Humidity sensor
- Carbon dioxide sensor
-
GL100-WL / N
- Dual port adapter
- Illuminance/UV sensor
- Carbon dioxide sensor

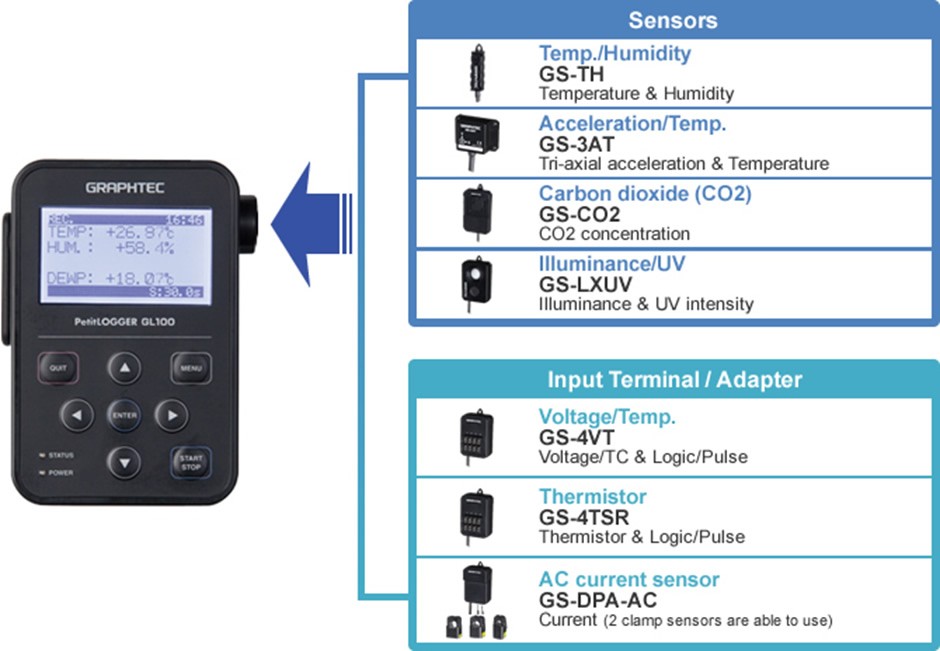

Sensor
| No. | Input module | Measurement (actual sensing) | Measurement (calculated value) |
| 1 |
Temp./Humidity sensor GS-TH |
Temperature (-20 to 85 ºC), Humidity (0 to 100 % RH) |
Accumulated temperature, Dew-point temperature |
| 2 |
Acceleration/Temp. sensor GS-3AT |
Acceleration in 3-axis (max. 10 G), Temperature (-10 to 50 ºC) |
N/A |
| 3 |
Illuminance/UV sensor GS-LXUV |
Illuminance (max. 200 k lx), UV intensity (max. 30 mW/cm2) |
Accumulated Illuminance, Accumulated UV intensity |
| 4 |
Carbon dioxide sensor GS-CO2 |
CO2 concentration (max. 9999 ppm) |
N/A |
